Thin-Stop Thin LED Stop Sign

Product
24″ (610 mm) Thin Led Stop Sign, 10 W solar power unit
Product number
37531
Dimensions
32 x 32 x 8 in – 30 lbs
Price
1840$

Buy this product

Product
30″ (760 mm) Thin Led Stop Sign, 10 W solar power unit
Product number
37532
Dimensions
32 x 32 x 8 in – 33 lbs
Price
2070$

Buy this product

Fast shipping
Need a quote for a large order?
Call 1-866-623-2580 or send us an email

REINFORCES THE SIGN IN CRITICAL ZONES

TWO (2) POWER SOURCES AVAILABLE

INCREASES ROAD USER SAFETY

Why choose the luminous LED stop sign?

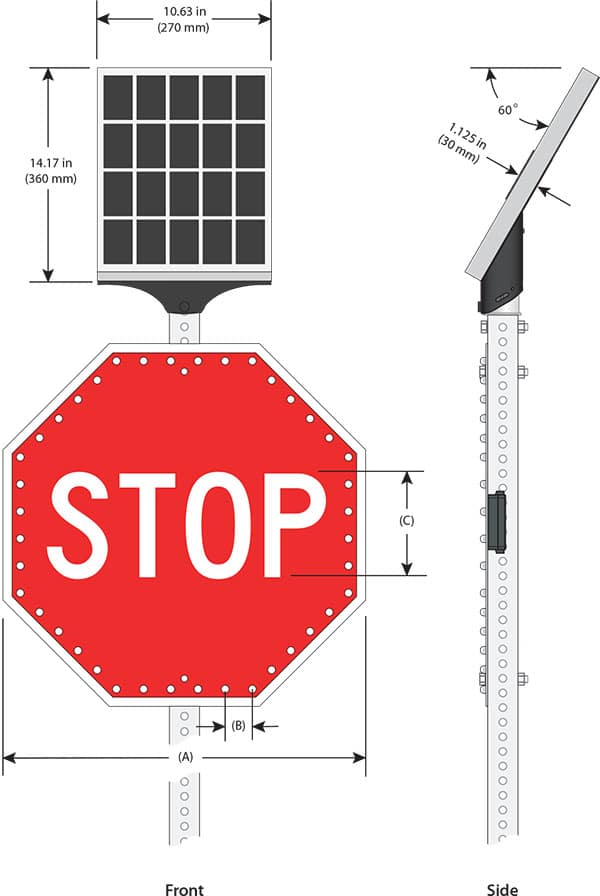

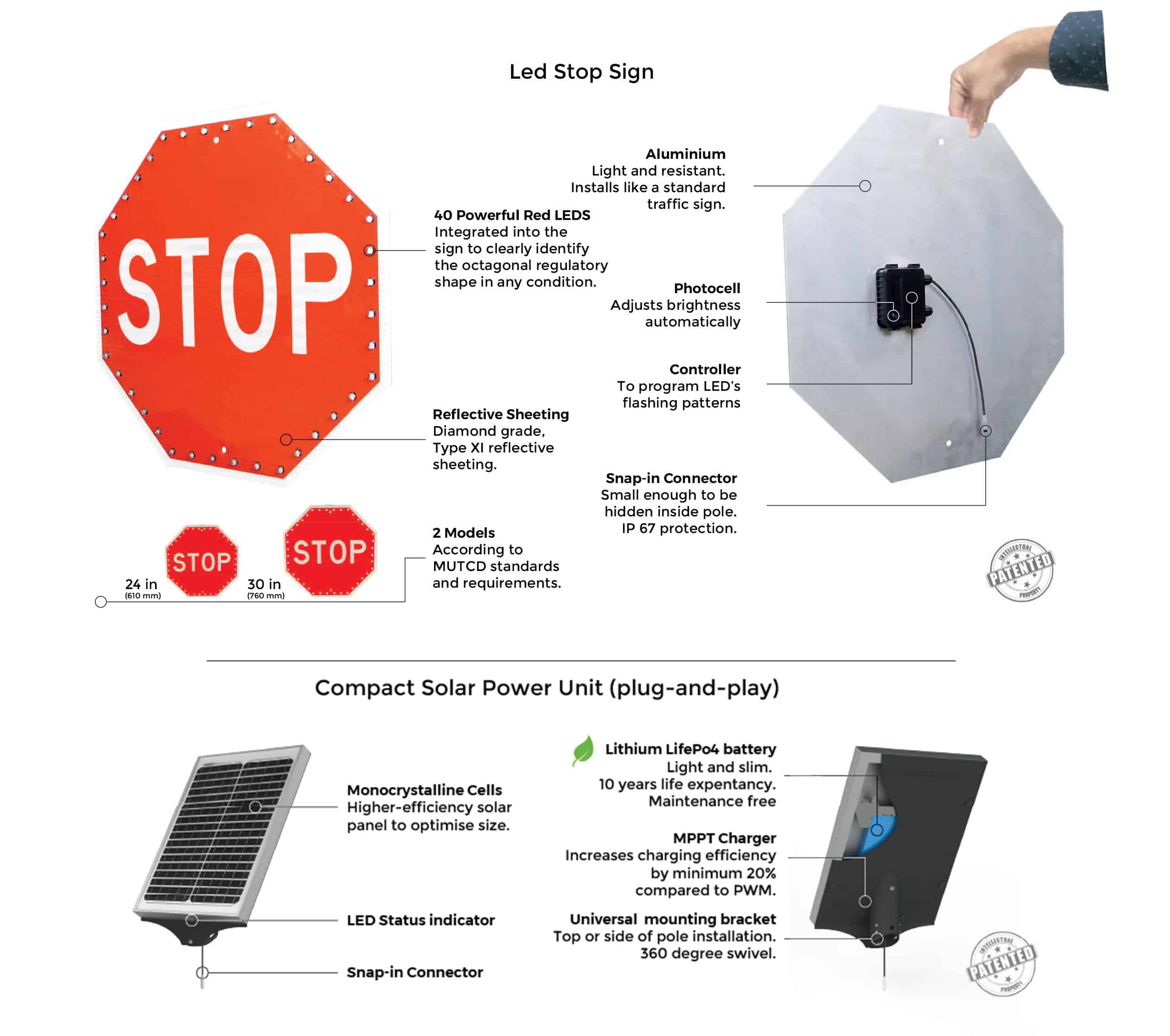

Technical specifications of the solar LED stop sign

Solar Power Unit (All-in-one)

Monocrystaline Solar Panel: 10 W
LifePo4 Battery: 12.8V – 9Ah
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, Male, 6″, IP67
Operating Temperature: -40 to +74°C (-40 to + 165°F)
Weight: 4.5 kg (10 lb)

LED Stop Sign

Standard: MUTCD & TAC
Color: Red 626 nm (4000K)
Led Angularity: 30 degrees
Life Expectancy: 100,000 hrs
Luminosity: 100 cd day – 30 cd night
Auto-Dimming: Variable based on ambient light
Voltage In: 10.8 to 15 VDC
Max. Power @ 12 V: 8 W
Connector: 10 mm OD, Male, 6″, IP67
Flash Patterns: 0.1 – 0.2 – 0.5 sec or Tri-Flash
Flash Rate: 60 per minute
Activation: 24/7, night only, on-demand
Default Setting: 0.1 sec, 24/7
Back Plate: Aluminum 5052-H38
Reflective Sheeting (Yellow): 3M™ Diamond grade Type XI
Lens: UV-resistant transparent polycarbonate
Waterproof Rating: IP65
Operating Temperature: -40 à +50°C (-40 to +131°F)

Product Number	Description	Box : Dimenson – Weight	HSS Code
#37531	24″ (610 mm) Thin Led Stop Sign, 10 W solar power unit	32 x 32 x 8 in – 30 lbs	8530.90	Buy This Assembly
#37532	30″ (760 mm) Thin Led Stop Sign, 10 W solar power unit	32 x 32 x 8 in – 33 lbs	8530.90	Buy This Assembly

Included with Assembly Kit : Installation hardware for 2″ Telespar post, 2-3/8″ round post, 4″+ round post. Two (2) years Limited Warranty against defects in workmanship and materials. Smart USB Dongle required to change configuration of the stop sign.
