Call 1-800-623-2580Smart-Flash Rectangular Rapid Flash Beacon (RRFB)
Product
Single-Side Kit- Set of two (2) for ONTARIO crossing, 30 W solar power unit
Product number
37744
Dimensions
32ʺ x 18ʺ x 9ʺ – 40 lb
Price
4830$
Product
Double-Side Kit- Set of four (4) for ONTARIO crossing, 30 W solar power unit
Product number
37746
Dimensions
32ʺ x 18ʺ x 9ʺ – 49 lb
Price
4830$
Product
Single-Side Kit- Set of two (2) for USA, Alberta, BC crossing, 30 W solar power unit
Product number
37723
Dimensions
32ʺ x 18ʺ x 9ʺ – 40 lb
Price
4830$
Product
Double-Side Kit- Set of four (4) for USA, Alberta, BC crossing, 30 W solar power unit
Product number
37724
Dimensions
32 x 18 x 9 po – 49 lb
Price
4830$
Fast shipping
Need a quote for a large order?
Call 1866 623-2580 or send us an email
REINFORCES THE MESSAGE IN THE PROBLEMATIC AREA
SOLAR POWERED
INCREASES THE SAFETY OF ROAD USERS
LOW COST OF INSTALLATION

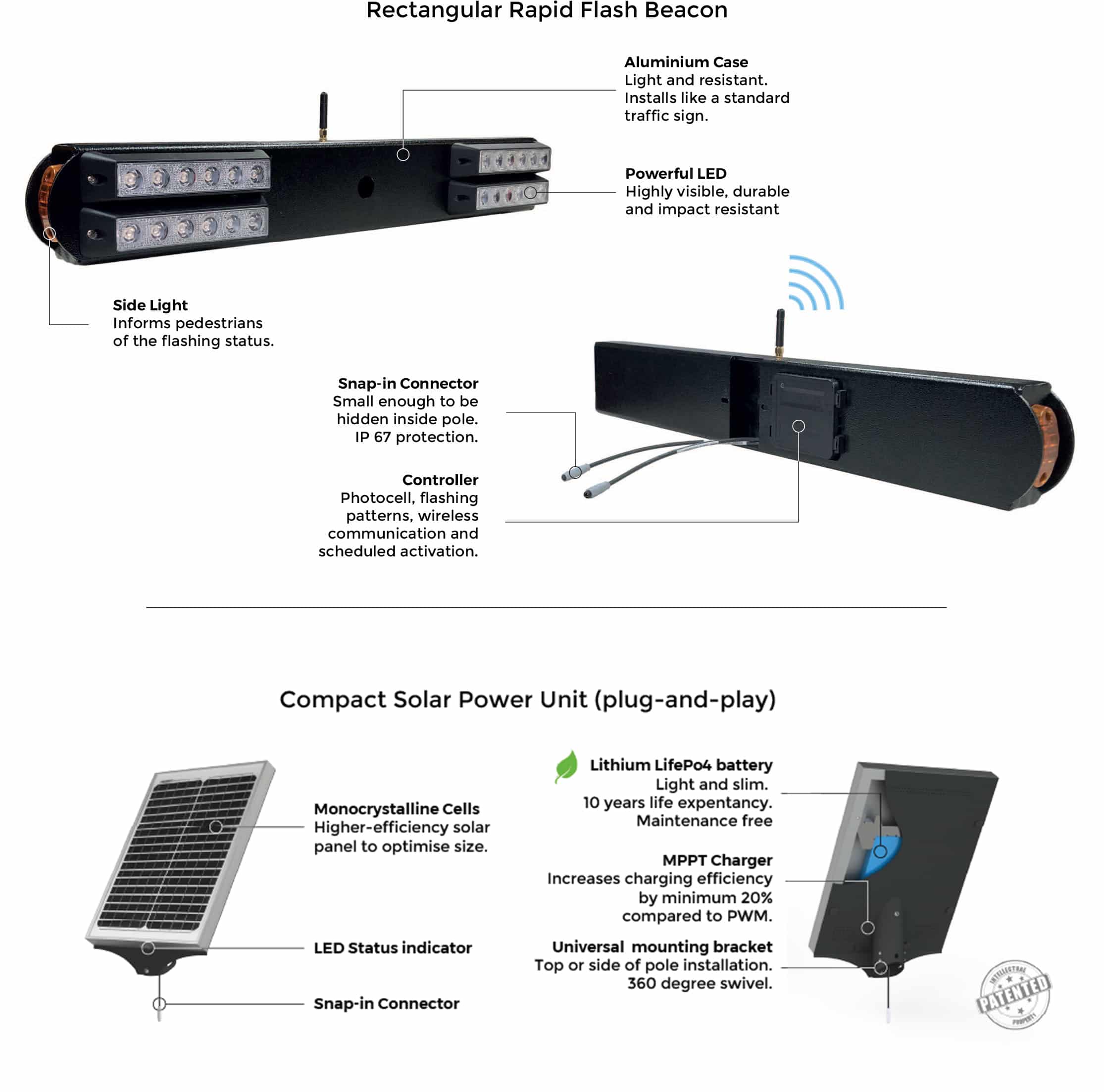

Smart-Flash Rectangular Rapid Flash Beacon (RRFB) Modèle L Specifications

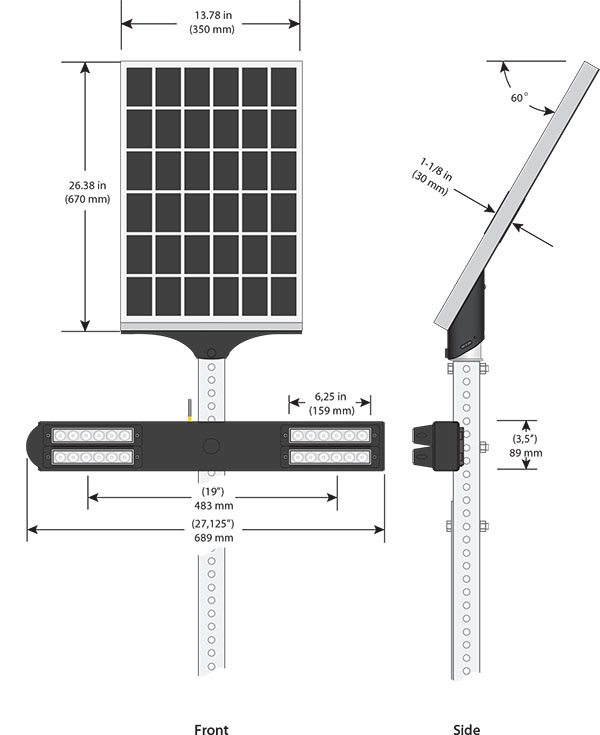

TECHNICAL SPECIFICATIONS OF THE MODEL L RRFB
Flashing Beacon
Flasher Size: 72 x 159 mm (3ʺ x 6.25ʺ)
Standard: SAE J595 class1
Color: Amber
Lens: UV-resistant clear polycarbonate
Life Expectancy: 100,000 hours
Visibility: More than 300 m (1000′)
Auto-Dimming: Variable based on ambient light
Voltage In: 10.8 to 15 VDC
Max Power @ 12 V: 15 W
Wireless Communication: Encrypted 902 MHz
Wireless Range: Up to 100m (300′) free field
Connector: 10 mm OD, Male, 6ʺ, IP67
Flash Patterns: WW+S, BLOCK or 2-5 (MUTCD)
Flash Rate: 75 per minute
Activation: On-demand
Default setting: WW+S, On-demand
Rectangular Housing: Aluminum Black Painted
Waterproof Rating: IP65
Operating Temperature: -40 to +50°C (-40 à +131°F)
Weight: 3.1 kg (6.75 lb)
Solar Power Unit (All-in-one)
Monocrystalline Solar Panel: 30 W
LifePo4 Battery: 12.8V – 14Ah
Solar Charger: MPPT, 10 A, IP67
Connector: 10 mm OD, Male, 6ʺ, IP67
Operating Temperature: -40 to +74ºC (-40 to +165ºF)
Weight: 7.7 kg (17 lb)
| Product Number | Description | Box : Dimenson – Weight | HSS Code | |
|---|---|---|---|---|
| #37744 | Single-Side Kit- Set of two (2) for ONTARIO crossing, 30 W solar power unit | 32ʺ x 18ʺ x 9ʺ – 40 lb | 8530.90 | Buy This Assembly Kit |
| #37723 | Single-Side Kit- Set of two (2) for USA, Alberta, BC crossing, 30 W solar power unit | 32ʺ x 18ʺ x 9ʺ – 40 lb | 8530.90 | Buy This Assembly Kit |
| #37746 | Double-Side Kit- Set of four (4) for ONTARIO crossing, 30 W solar power unit | 32ʺ x 18ʺ x 9ʺ – 49 lb | 8530.90 | Buy This Assembly Kit |
| #37724 | Double-Side Kit- Set of four (4) for USA, Alberta, BC crossing, 30 W solar power unit | 32 x 18 x 9 po – 49 lb | 8530.90 | Buy This Assembly Kit |
Included in kit: Installation hardware for 2’’ Telespar post, 2-3/8‘’ round pole, U-Post or streetlight pole. Two (2) years Limited Warranty against defects in workmanship and materials.
